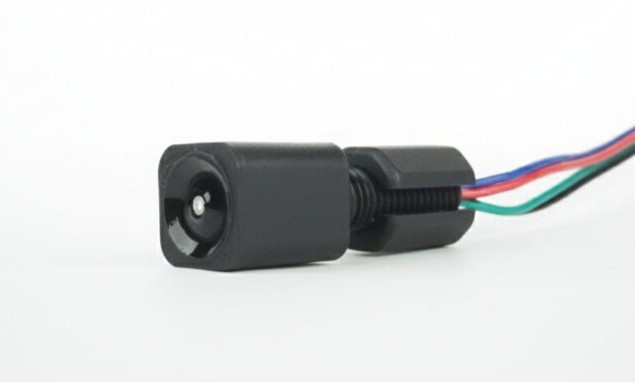

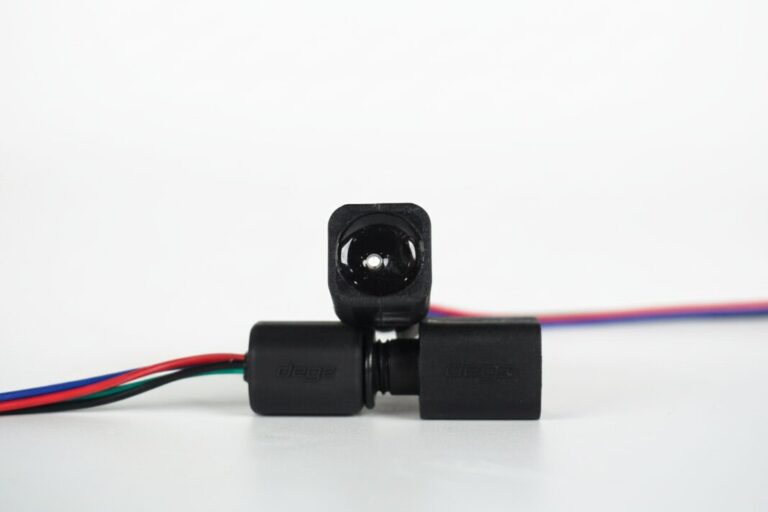

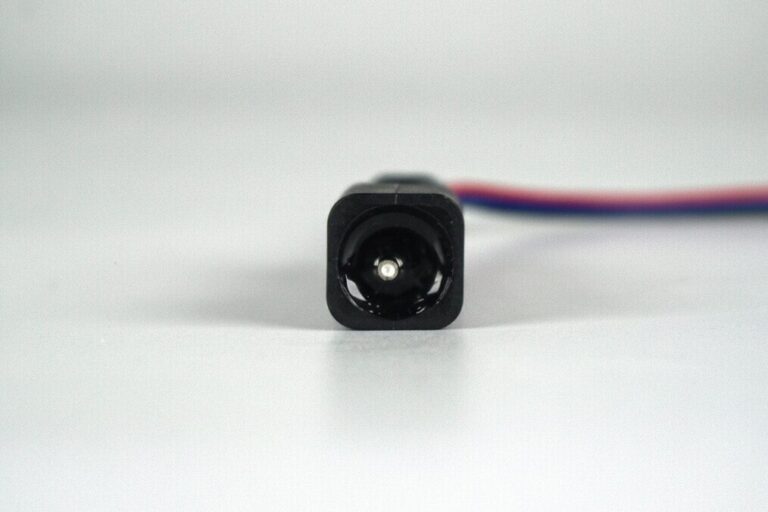

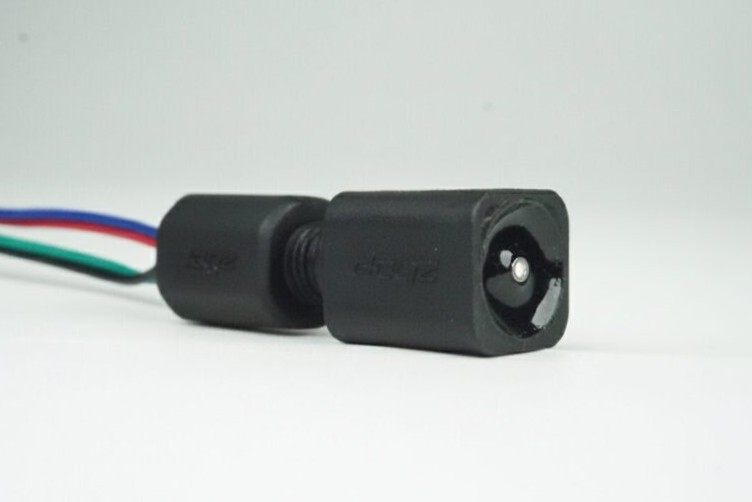

Introducing the easily operable D300 Depth/Pressure and Water Temperature Sensor, which is located within the voltage converter card circuit!
D300 is a ready-to-use sensor that maintains sealing in your ROV or AUV and has been developed with sensitivity to high and low pressure values. You can measure depth with 2mm precision down to a depth of 300 meters. This sensor includes a temperature sensor accurate to ±4°C.
Depth/Pressure and Temperature sensors, developed with MS5837-30BA, are compatible with PixHawk and other flight control cards.
D300 can communicate via I 2 C. A JST connector is used, compatible with most flight control boards, including Pixhawk and others. The Depth Sensor is supported by default on ArduPilot and ArduSub so it can be used on any ArduSub-controlled ROVs.
Technical Details
Supply Voltage: 4.5-5.5V
i2C Voltage: 3.3V
Temperature Sensitivity: ±1°C
Depth Sensitivity: 2mm
Operating Depth: 0-300 meters
CAUTION – Since this device operates with 3.3V i2C voltage, it will be damaged when connected to devices operating with 5V i2C voltage.
Sensor Pinout
Content
- D300 Depth/Pressure and Temperature Sensor (will be sent with dupont-end connectors)
