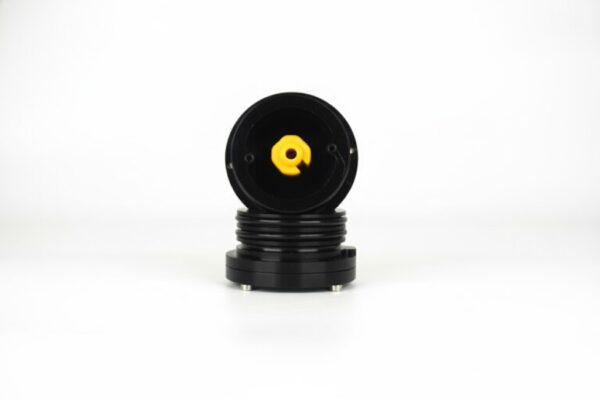

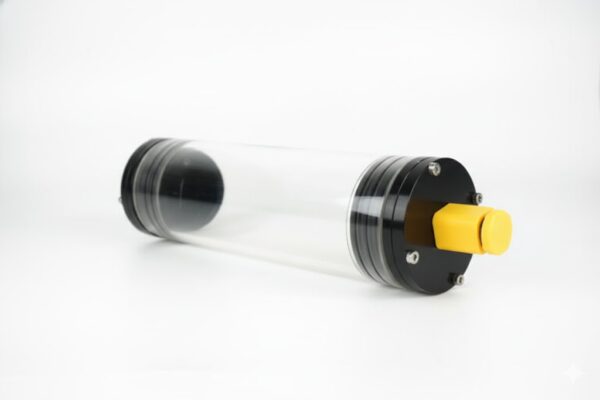

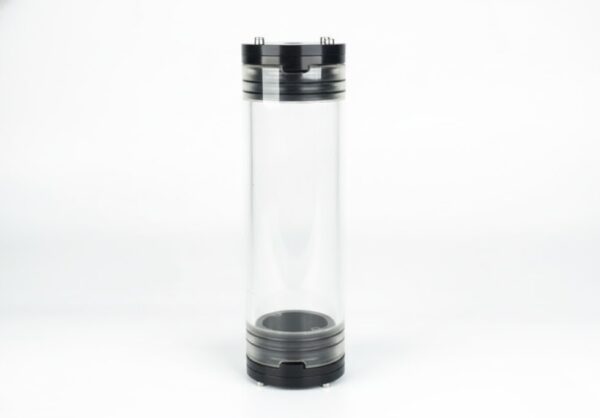

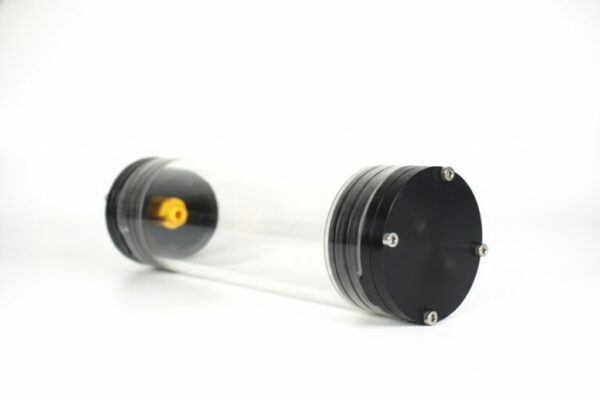

H-60 Underwater Chamber

The biggest problem with underwater vehicles is watertightness. If you want a quick and professional solution to this problem, you’ve come to the right place.

Our leakproof housing is designed to protect the electronic system in underwater vehicles. It protects your underwater vehicle’s electronic system in the event of a collision with a hard surface underwater. It has been tested in both seawater and pool environments. It is suitable for both manual and autonomous underwater vehicles. You can start using our housing quickly by watching the assembly and soldering videos.

Its features;

• Inner Diameter 50mm
• Outer Diameter 60mm
• Suitable for use in saltwater.
• Anodized aluminum flange and passivated chrome screws.
• Maximum depth of 100 – 150 meters.

*Maximum depth varies depending on the tank length.

Box Contents

• Acrylic, whether in length.
• H60 Flange (2 pieces)
• H60 Cover
• 3×45 O-rings (6 pieces)
• Grease
• M3x10 Allen Screws (10 pieces)
