DEGZ NEO CABLE GLAND (Penetrator)
Underwater cable gland providing a flawless seal under high pressure. A professional solution designed for ROV, AUV, and marine systems.
Neo Cable Gland – Cable Penetrator
Maximum Depth
300m
Material
Plastic
Leakproof
O-Ring/Epoxy
A reliable and economical cable routing solution for professional underwater projects.

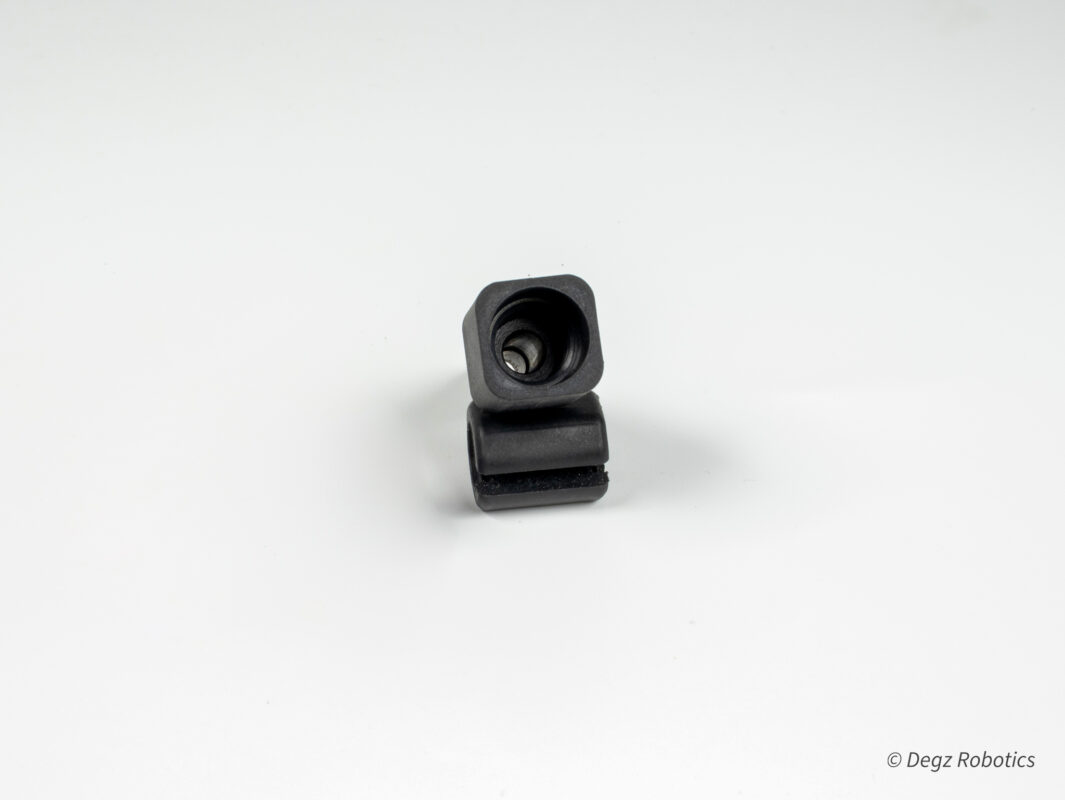

DEGZ Neo Cable Gland (Penetrator)
DEGZ Neo Cable Gland (Penetrator) stands out as a groundbreaking innovation in underwater technology. It provides a flawless seal even under high pressure and offers an indispensable solution for underwater vehicles. This fitting ensures the safe and leak-proof routing of cables indoors, allowing underwater vehicles to perform their complex tasks without problems.
The product is specifically designed for ROVs, AUVs , and other sensitive underwater sensor systems. It offers complete reliability even in the most demanding deep-sea applications.
Technology Used
The DEGZ Neo Penetrator is designed to withstand all kinds of challenging underwater conditions. Its durable plastic construction offers solutions tailored to the needs of every project. Thanks to O-ring technology, it provides a perfect seal and creates even 360-degree pressure distribution around the cable.
This structure, further strengthened by the possibility of epoxy application, ensures that underwater vehicles perform at a high level even in the most demanding missions. The clamping nut mechanism mechanically secures the cable while providing protection against tensile and bending forces.
How do I use it?
The assembly process is quite simple: Thread the cable through the penetrator housing, correctly position the O-ring seal, and secure the tightening nut. To apply the epoxy: Fill the inner housing using epoxy suitable for seawater.
Key points: Ensure the O-ring is properly seated. For use as a vacuum line: Choose the Drain and Vacuum Fitting – (Valve Penetrator) version. For detailed documentation: DEGZ Wiki
Areas of Daily Use
It is used not only for underwater vehicles but also in a wide variety of industrial applications: providing long-lasting performance in industrial automation systems, electrical panels, outdoor lighting fixtures, security cameras, renewable energy systems (solar panels, wind turbines), marine equipment, and telecommunication infrastructures.
Detailed Information
| Penetrator Body | 1 piece |
| Penetrator Nut | 1 piece |
| O-Ring Seal | 1 piece |
| What is the maximum depth? | 300 meters |
| Is epoxy needed? | Yes |
| Which cable diameters is it compatible with? | Suitable for diameters up to a maximum of 6 mm. |
